Surgical table with the latest technology and modern ergonomic design.

It has great adaptability and a wide range of accessories to meet surgical requirements, suitable for ENT procedures.

Design:

Διατίθεται σε στάνταρ έκδοση με βάση τύπου "T" με 5 αντιστατικούς τροχούς, (4 πίσω

wheels in 2 pairs and directional front), with foot

central brake activated.

Προαιρετικά διατίθεται με βάση "Super mobile" για βελτιωμένη ευελιξία, χάρη στους 4 αντιστατικούς τροχούς διαστάσεων 125 χιλ.

It has a driving system with central brake and directional wheels.

The table top, base and covers are made of matt polished stainless steel, creating smooth surfaces for better hygiene and cleaning. The covers are impact resistant, easy to clean and prevent the ingress of liquids, minimizing the risk of contamination.

It features high quality, ergonomic profile, antistatic polyurethane layers with 50 mm thick foam. Easily removable, with antibacterial protection, seamless, they ensure maximum hygiene and prevent cross-contamination.

Display flexibility:

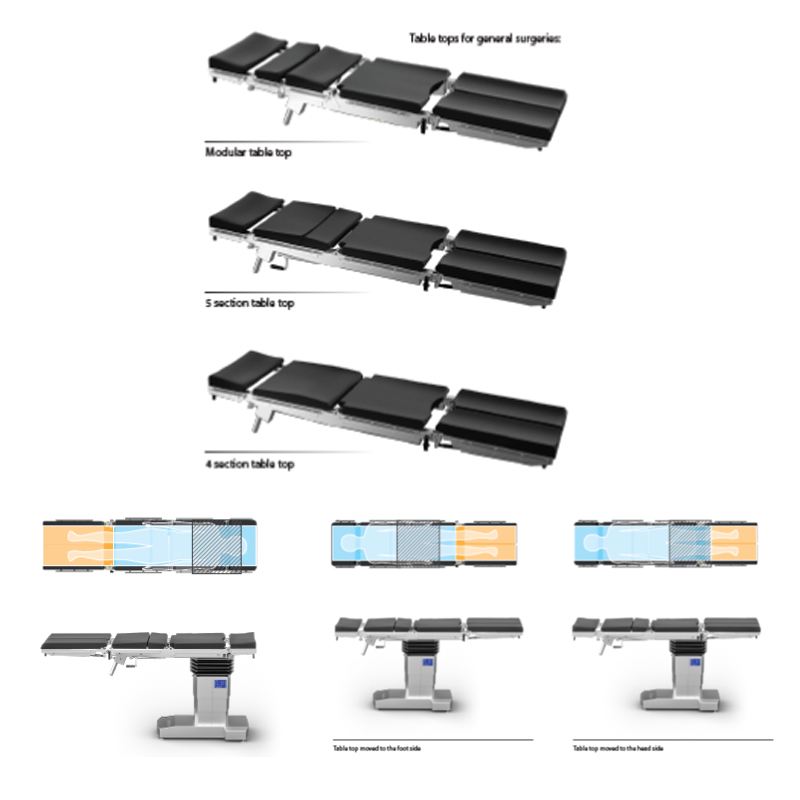

It has multi-section table surfaces (4,5 or 6 sections),

It is radiolucent from C-Arm throughout its length.

It has an X-ray cassette tunnel (except for the leg sections), with the ability to insert the cassette from both sides, a headrest and a footrest.

• It is battery powered, with a built-in charger in the base.
• has software that provides smoothness and accuracy in

table movements.

• It has a sophisticated electro-hydraulic system.

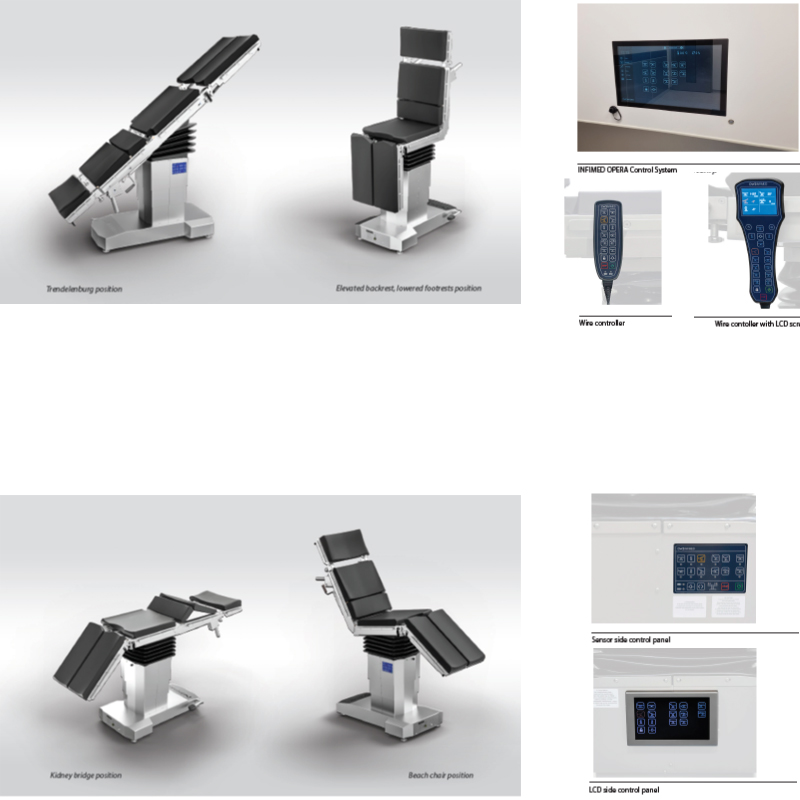

Handling system:

• It features a sturdy wired controller with a visual battery level indicator
• It can be equipped with a wireless controller with LCD screen (optional)
• It can be equipped with a wireless controller (optional)
• It can have a control panel on the sensor side of the table column (optional)
• Can be equipped with a side LCD control panel on the table column (optional)
• Foot control.
• Wall-mounted control panel (OPERA system) optional.
• Control bypass system (optional), mechanical-hydraulic, used in case of cable controller failure, main drive failure or control system failure.

• Table movement range controlled via electrohydraulic drive:

- Ρύθμιση ύψους,

- Κλίσεις επιφανειών τραπεζιού: πλάγιες και διαμήκεις

(Trendelenburg και αντί- Trendelenburg),

- Τμήμα πλάτης και νεφρική γέφυρα (προαιρετικά),

- Διαμήκης κύλιση (προαιρετικό)

- Κεντρικό φρένο (προαιρετικό).



• Γωνίες ρύθμισης 40° Trendelenburg/ αντί - Trendelenburg και η κλίση 30° το καθιστούν ιδανική λύση για ελάχιστα επεμβατικές διαδικασίες.



• Table movement range mechanically controlled or with gas spring support:

- Τμήμα πλάτης και νεφρική γέφυρα,

- Τμήματα ποδίων,

- Τμήματα προσκέφαλου,

- Διαμήκης κύλιση.



Possibility of configuration for angiographic, bariatric, orthopedic, urological and gynecological use.

It has a wide range of peripheral accessories:

side clamps, knee support, arm support, side supports, shoulder support, anesthesia frame, IV pole, support for meniscus operations, restraint belts, gynecological basin, urological basin, support surface for shoulder operations, support for anesthesia tubes, auxiliary instrument table, X-ray drawer, chest support, leg supports, divisible and integral, proctological accessory, extensions for bariatrics, special extendable headrest, DORO neurosurgical accessory, orthopedic accessories with extension system, hip support, orthopedic accessory placement trolley, orthopedic accessory storage trolley, orthopedic surgery leather boots, accessory for limb surgery hand, accessory for shoulder surgery with a special headrest.

Technical characteristics INFIMED VIVAX	OT-02 standard	OT-02 angiography	OT-02 bariatric
Total table length with 4, 5 sections, articulated, orthopedic and bariatric table top	2100 mm	-----	2100 mm
Total table length with 6 sections	2300 mm	-----	2300 mm
Total table length carbon fiber surface	-----	2200 mm	-----
Table top width (With/Without side rails)	500 mm / 560 mm	600 mm	800 mm/ 860 mm **
Standard height adjustment, with 50 mm mattress (electro-hydraulic)	730 mm – 1080 mm	-----	730 mm – 1080 mm
Extended height adjustment, with 50 mm mattress (electro-hydraulic)	700 mm – 1150 mm	-----	700 mm – 1150 mm
Height adjustment, without mattress (electro-hydraulic), with longitudinal and lateral scrolling	-----	800 mm – 1150 mm	-----
Height adjustment, without mattress (electro-hydraulic), with longitudinal scrolling	-----	730 mm – 1080 mm	-----
Height adjustment, without mattress (electro-hydraulic), fixed	-----	660 mm – 1010 mm	-----
Side tilt adjustment (electro-hydraulic)	± 30°	± 20°	± 30°
Trendelenburg / reverse-Trendelenburg adjustment (electro-hydraulic)	± 40°	± 20°	± 40°
Backrest adjustment (pneumatic)	- 45° ; +85°	-----	-----
Backrest adjustment (electro-hydraulic)* optional	- 35° ; +85°	-----	- 35° ; +85°
Footrest adjustment (pneumatic)	- 90° ; +25°	-----	- 90° ; +25°
Leg abduction (mechanical)	180°	-----	180°
Headrest adjustment (pneumatic)	± 45°	-----	± 45°
Kidney bridge adjustment (mechanical) Optional kidney bridge adjustment (electro-hydraulic)*	~120 mm	-----	~120 mm
Longitudinal scrolling (mechanical) Optional longitudinal scrolling (electro-hydraulic)*	350 mm	350 mm	350 mm
Lateral scrolling (electro-hydraulic)*	-----	210 mm	-----
Weight	280 kg +/- 10%	280 kg +/- 10%	300 kg +/- 10%
Maximum dynamic/static load	250 / 300 kg	250 kg	450 / 540 kg
Built-in battery, Built-in charger	24 V 230V ~ 50/60Hz	24 V 230V ~ 50/60Hz	24 V 230V ~ 50/60Hz
Working time between battery charges	Έως 65 επεμβάσεις	Έως 65 επεμβάσεις	Έως 65 επεμβάσεις
Lifetime	10 έτη	10 έτη	10 έτη
Grade, Protection class, application type	IP-X4 / I / B	IP-X4 / I / B	IP-X4 / I / B
